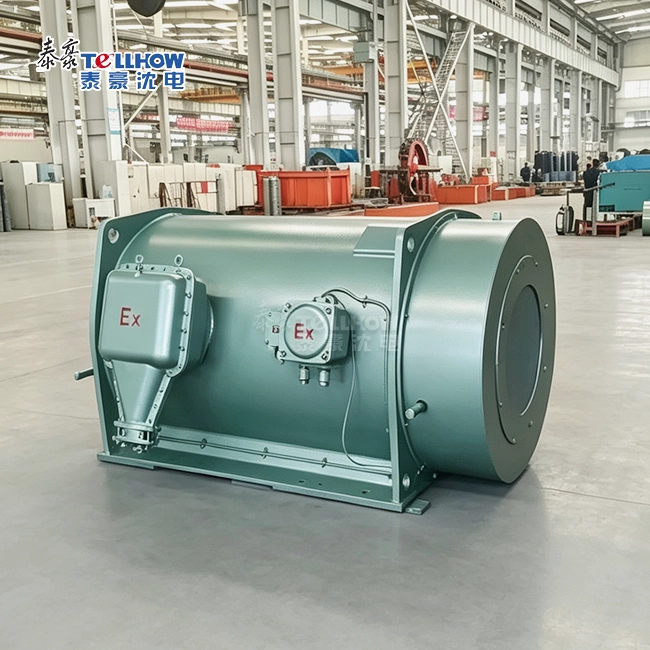

composite explosion-proof high voltage motor

Composite Explosion-Proof High Voltage Motor | YBKK Series

When your industrial operations demand uncompromising safety in hazardous environments, our composite explosion-proof high voltage motor delivers enterprise-grade performance you can trust. These motors, which were designed by Tellhow Shenyang Electric Machine Co., Ltd., can produce 185–5000 kW of power at voltages of 3–10 kV and in 2–12 pole setups. Motors that meet IEC 60079, ATEX, and IECEx standards are intended to contain fires inside while stopping ignition from the outside. They have protection ratings of up to IP66, shielding classes F/H using modern VPI technology, and protection ratings of up to IP55. With the IC611 cooling method and meeting the GB-30254-2 energy saving standards, these motors use 15-20% less energy and keep working properly in temperatures as low as -50°C.

Why Your Operations Need Advanced Explosion-Proof Protection

Industrial sites that deal with dangerous gases, vapors, or dust are always having to deal with safety issues. You need more than just equipment that meets the bare minimum. For example, you need motors that are designed to protect your workers, your assets, and your production.

The special needs of petroleum plants, ocean bases, and deep mines are just too much for regular motors to handle. That's why having the right safety is important.

Our motors have a complex "breathing" system that keeps condensation from building up inside. This part of the design keeps wetness from damaging electrical parts that are sensitive and could affect their performance and safety.

The flameproof shell (Ex d grade) means that if there is an internal fire, the strong case will completely contain the explosion pressure. Gases that escape cool below the point of ignition before they reach the atmosphere outside.

Technical Excellence Built Into Every Component

When you buy a motor, you're putting in exact engineering backed by decades of experience making things.

The Vacuum Pressure Impregnation (VPI) process makes sure that the shielding works better. This method pushes glue deep into the gaps between the coils, making them resistant to chemicals and wetness, which greatly increases their useful life.

Dimensional consistency that lowers noise and shaking is achieved by high-precision manufacturing methods. Motors that run more smoothly and need less care will be appreciated by your maintenance teams.

Our composite explosion-proof high voltage motor integrates intelligent adaptive load regulation. This function changes performance automatically based on current operating needs, reducing energy use without any user input.

Multidimensional state tracking lets you know about problems before they happen. You can plan repair ahead of time instead of having to fix things when they break down.

Technical Specifications at a Glance

Understanding the 'Composite' Advantage

The word "composite" refers to when multiple safety features are strategically put together in one motor design. For each function, different parts use the best security method for that purpose.

Flameproof (Ex d) design is usually used for the main motor cover. This heavy-duty design can handle internal pressure and stops the flame from spreading.

Enhanced safety (Exe) defense is often used in terminal boxes. Through better insulation spacing and termination design, this way gets rid of possible sources of fire.

In junction areas, cleaning systems (Ex p) that keep the pressure high with clean air or a harmless gas may be installed. This completely stops dangerous atmospheres from getting in.

This stacked method gives full safety while minimizing weight, managing heat, and making upkeep easier. You get the most safety without adding extra size or complexity.

Applications Across Critical Industries

Petrochemical Refineries: The places where your crude oil transfer pumps and process engines work are classed as Zone 1 and Zone 2. High voltage operation reduces current flow, minimizing cable heating and voltage drop over long distances. The composite explosion-proof high voltage motor can work in flammable chemical environments and provide the power that tough process equipment needs.

Offshore Oil and Gas Platforms: FPSOs have limited space and weight, so they need small, strong options. In salt spray settings, these motors power gas export compressors and saltwater input pumps. Anti-corrosion finishes and protected bearing arrangements make service times longer, which cuts down on expensive repair work that needs to be done abroad.

Underground coal mining: Motors for ventilation fans and conveyor systems need to be able to handle the presence of gas and coal dust. The strong construction can handle the vibrations that come from digging activities while still being explosion-proof. Independent cooling systems make sure that the system works reliably even when the speed changes.

LNG Liquefaction Plants: In cold processing, pumps that use coolants must be very reliable. The precise torque control of these motors is needed for multi-stage compression, and the sealed housing keeps any gas from getting in and damaging the windings.

Energy Efficiency That Impacts Your Bottom Line

The cost of energy makes up a big part of the total cost of ownership. When compared to standard designs, our motors use 15 to 20 percent less energy.

Core losses are kept to a minimum by high-efficiency magnetic circuit designs. When the shape of the rotor is optimized, resistance goes down and power factor goes up.

When big motors are run all the time, these efficiency gains add up to big saves every year. A 2000 kW motor that is used for 8,000 hours a year can save tens of thousands of dollars in power costs.

Less useless heat is also made when things are more efficient. Your cooling systems don't have to work as hard, and the places where your equipment is kept cool.

Customization Meets Your Unique Requirements

There is no one way that all manufacturing sites work. You might need certain power settings, mounting setups, or changes to fit your surroundings.

Because we can do both ODM and OEM, we can offer flexible options. Power and speed specs can be changed to fit the needs of your unique application.

Optimizing the insulation class makes sure that the temperature reserves are right for your working setting. Unique toxic risks are dealt with by special coverings.

Changes to the structure are made to make up for lack of room or odd mounting situations. Our engineering team comes up with answers whether you need vertical mounts, special flanges, or custom shaft extensions.

Small-batch production is useful for test projects or other specific uses. Large-scale production saves money by standardizing the fleet.

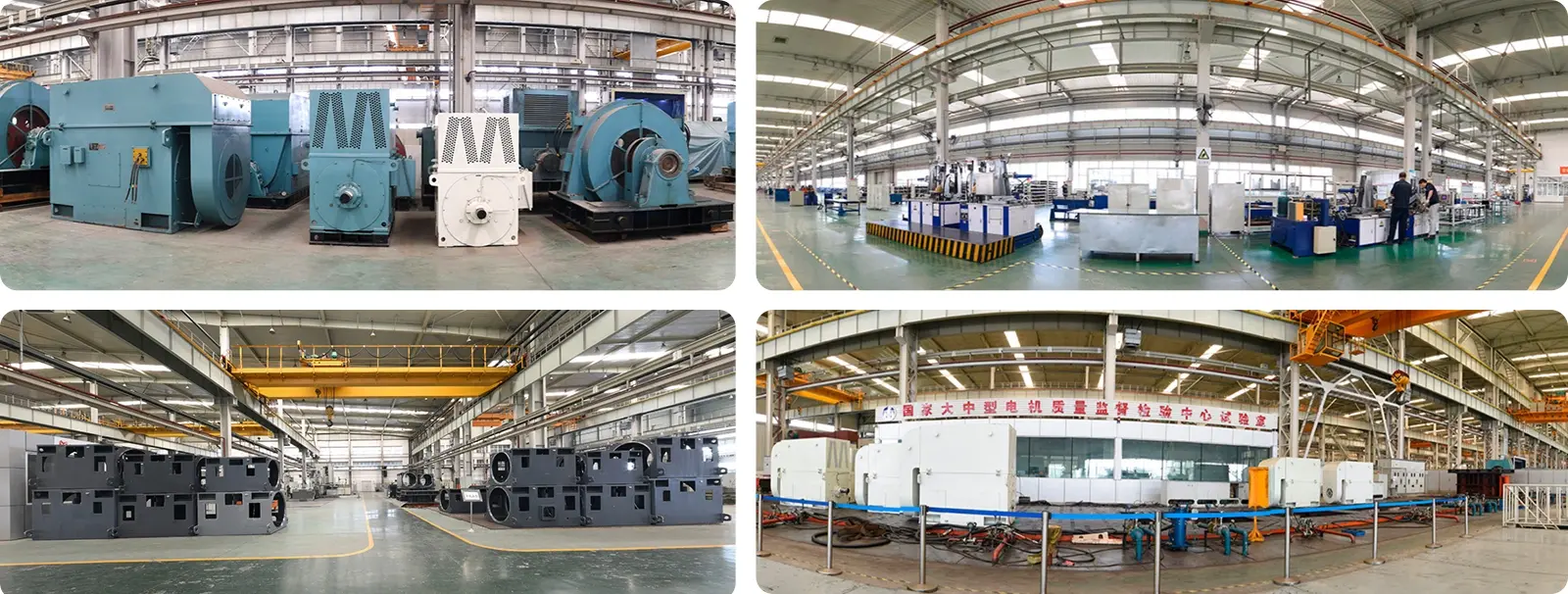

Why Tellhow Shenyang Electric Machine Co., Ltd.

With 500 million RMB registered capital and 8 million kW annual production capacity, we operate one of China's most advanced motor manufacturing facilities. Our 190,000 square meter production campus houses precision machining centers, automated winding equipment, and comprehensive testing laboratories.

We produce 49 series across more than 2,100 specifications. This breadth means you're selecting from proven designs rather than experimental prototypes.

Our quality management systems maintain CE, UL, VDE, SASO, SNI, PSE, KC, and CCC certifications. These credentials confirm our motors meet stringent international safety and performance standards.

Global service networks provide localized technical support, engineering consultation, and spare parts availability. You're not alone after installation—our team supports your operations throughout the motor lifecycle.

Making the Right Choice for Long-Term Success

Selecting explosion-proof motors involves balancing safety requirements, performance needs, and total cost of ownership. You need equipment that meets regulatory compliance while delivering reliable operation year after year.

Our engineering team helps you navigate classification requirements, voltage selection, and protection method combinations. We review your application details to recommend optimal configurations.

Factory acceptance testing verifies performance before shipment. You receive documented test results covering electrical parameters, vibration levels, temperature rise, and explosion-proof integrity.

Installation support and commissioning assistance ensure proper setup. Our technicians can guide your team through initial startup procedures and operational checks.

Investing in quality explosion-proof motors protects your most valuable assets—your people and your production capability. When hazardous environments demand absolute reliability, our product delivers the protection and performance you need.

Frequently Asked Questions

Q: Why choose a synchronous version over an induction motor?

A: Synchronous motors offer superior efficiency and power factor correction capability. For high-voltage industrial plants, improving facility power factor reduces utility demand charges significantly. The efficiency advantage becomes more pronounced at larger frame sizes and higher voltages.

Q: How often do explosion-proof components require inspection?

A: IEC 60079-17 recommends detailed inspections every three years. However, annual visual checks of flameproof joints, cable entries, and surface finishes help identify issues early. Your maintenance schedule should consider operating severity and environmental conditions.

Q: Can these motors operate with variable frequency drives?

A: Absolutely. VFD-compatible versions feature reinforced insulation systems designed to handle high-frequency voltage spikes. The corona-resistant magnet wire and enhanced VPI resin prevent premature insulation breakdown. Independent forced ventilation (IC416) maintains cooling efficiency at reduced speeds.

Q: What makes the flameproof joint surfaces so critical?

A: These precision-machined surfaces create the flame path that cools escaping gases below ignition temperature. Any corrosion, damage, or contamination compromises this function. Maintenance procedures must protect these surfaces from paint, grease, or mechanical impact.

Q: Are these motors suitable for extreme temperature environments?

A: Yes. Standard versions operate reliably from -20°C to +40°C ambient. Specialized configurations handle -50°C using integrated space heaters and synthetic lubricants formulated for low-temperature fluidity. High-temperature versions accommodate +60°C environments with upgraded insulation materials.

Q: What is the typical delivery timeframe for custom configurations?

A: Standard catalog specifications ship within 8-12 weeks. Custom engineered solutions involving unique voltage classes, specialized coatings, or modified dimensions typically require 16-26 weeks. This timeframe includes engineering design, certification review, manufacturing, and factory testing.

Contact Us

Ready to discuss your specific application requirements for composite explosion-proof high voltage motor? Reach out to our technical team at sxmotor@yeah.net
