High Torque Coal Mill Motor: Industrial-Grade YTM Series for Continuous Heavy-Duty Operation
The High Torque Coal Mill Motor from Tellhow Shenyang Electric Machine has been shown to work well in power plants and mines that need to be reliable in harsh circumstances. Our YTM series three-phase asynchronous motors are designed to work with tube-type coal mills. They come with 6P, 8P, or 10P pole configurations and can produce power rates ranging from 160kW to 2000kW. These motors have modern IC611/IC616 cooling systems and IP54/IP55 security grades, so they produce the same amount of power over long periods of time. With shaft heights ranging from 400mm to 800mm and compliance with IEC/JB/T7128 standards, our products are built to last. We can produce 8 million kW of power every year and have 500 million RMB in listed capital.
Why Your Coal Mill Operations Need Specialized Motor Solutions
Motors for coal mills need to be able to handle steady mechanical stress. Unlike most industrial motors, these tools have to deal with
- Extreme loads that need a high power reaction right away
- Continuous work 24 hours a day, seven days a week in dirty, hot places
- Grinding methods that cause a lot of sound
- Need for exact speed control to get the best results when pulverizing coal
The success of your production rests on motors that were made to handle these problems. You can't get the uptime you need from generic options.
Technical Specifications: YTM Series Motor Parameters
| Parameter | Specification |
|---|---|
| Item Number | 400~800 |
| Power Range | 160~2000kW |
| Rated Voltage | 6kV, 3kV, 380V |
| Rated Frequency | 50Hz |
| Number of Poles | 6P, 8P, 10P |
| Protection Grade | IP54, IP55 |
| Cooling Method | IC611, IC616, IC666, IC81W, IC86W |
| Installation Type | IMB3 |
| Connection Type | Box-type |
| Ambient Temperature | ≤40°C |
| Altitude | ≤1000m |
| Insulation Class | F Class/B Class |
Core Advantages That Reduce Your Total Cost of Ownership
1. Superior Torque Characteristics for Coal Mill Applications
Our High Torque Coal Mill Motor deliver immediate starting torque essential for overcoming the static inertia of loaded coal mills. The wound-rotor design allows you to adjust startup characteristics, preventing electrical grid disturbances while accelerating massive grinding components smoothly.
2. Enhanced Thermal Management
The IC611 cooling system uses separate cooling fans to keep the windings at the right temperature. Compared to other cooling ways, this design makes insulation last 30 to 40 percent longer. There will be fewer heat shutdowns and more time between repairs.
3. Dust and Contamination Protection
The IP54/IP55 grades make sure that coal dust doesn't damage the inside parts. The rough environment in coal handling plants can be avoided with sealed bearing systems and strengthened shelters.
4. Intelligent Load Adaptability
These motors can easily adapt to changing mill loads because they have built-in temperature tracking and vibration-resistant mounting systems. This flexibility keeps the machine from breaking down when the fuel changes or when the coal is spread out unevenly.

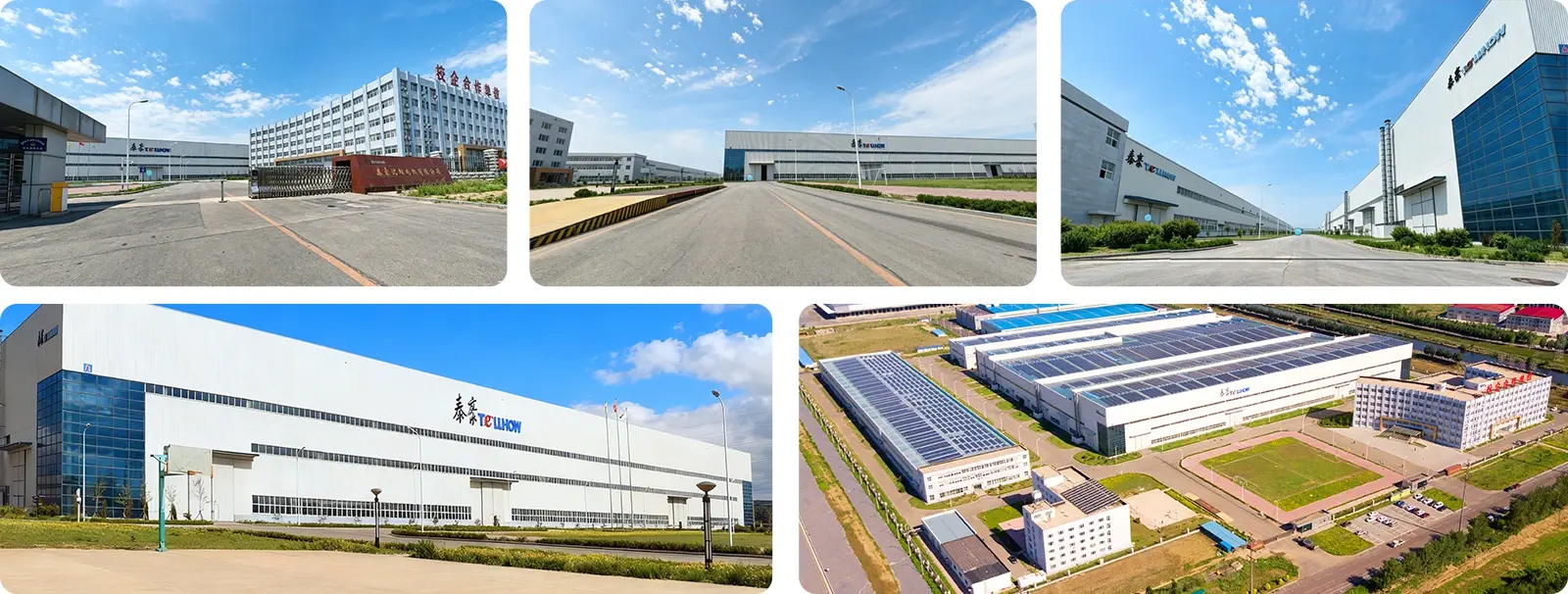

Engineering Excellence: What Sets Our Manufacturing Apart
Precision Manufacturing at Scale
Our 190,000-square-meter building has both traditional workmanship and advanced production processes. Each motor goes through:
- Rotor balancing with high accuracy to ISO 10816 standards
- Vacuum Pressure Impregnation (VPI) for insulation that doesn't get wet
- Testing for full-load temperature rise before shipping
- Analysis of vibrations over the whole range of operating speeds
Energy Efficiency That Impacts Your Bottom Line
Compared to regular motors, our high-efficiency magnetic circuit design cuts energy use by 15 to 20 percent. This saves between 120,000 and 160,000 kWh per year for a 1000kW motor that runs for 8,000 hours a year.
Global Compliance You Can Trust
Every High Torque Coal Mill Motor is made to international standards and has the right energy-efficiency certifications, such as CE, CCC, and others. This multi-region compliance makes it easier to buy things whether you're in Asia, Europe, or the Middle East.
Customization Capabilities: Tailored Solutions for Your Facility
We know that no two coal mill setups are the same. Our OEM and ODM services offer:
- Changing the voltage to fit your grid setup
- Changes to the speed ratio that match the best grinding speed for your mill
- Making changes to the mounting to fit current base plans
- Adapting to climate in places with high elevations or harsh temperatures
For specific uses, we can do small-batch production runs, and our large-scale capacity makes sure that multi-unit projects have a steady supply.
Application Scenarios: Where These Motors Excel
Power Generation Plants: Directly connected to tube mills for crushed coal preparation systems, which allow baseload power plants to run continuously and reliably.
Cement Making: Designed for mills that grind raw materials and coal in cement kilns, where precise control of fineness is very important.
Helping blast furnace operations where powdered coal intake needs precise flow rates and particle sizes in the steel industry.
Mining Operations: Operating coal handling equipment in mines with tough buildings that can handle rough conditions.
Long-Term Support: Partnership Beyond Purchase
Your investment in industrial motors represents years of operational dependency. We provide:
- Localized technical support through our service network
- Spare parts inventory for critical components with guaranteed availability
- Performance optimization consultations to maximize efficiency as operational conditions change
- Lifecycle extension services including rewinding and component upgrades
Our 49 product series and 2,100+ specifications mean we understand motor applications deeply. This expertise translates to practical advice that keeps your mills running.
Frequently Asked Questions
Q: How does the YTM series handle the high starting current typical of coal mill motors?
A: Our motors feature optimized rotor resistance characteristics that limit starting current to 5-6 times rated current while maintaining sufficient starting torque. This prevents grid voltage dips that could affect other facility equipment.
Q: What maintenance intervals should we expect?
A: Under normal operating conditions with proper cooling system maintenance, bearing replacement is typically needed every 20,000-25,000 running hours. Insulation resistance testing should occur annually, with detailed inspections every 3 years.
Q: Can these motors operate in high-altitude locations?
A: Standard ratings apply up to 1000m altitude. For installations above this level, we provide derating calculations and can customize cooling systems to maintain performance at altitudes up to 3000m.
Q: What documentation do you provide for installation and commissioning?
A: Every motor ships with detailed installation drawings, foundation specifications, electrical connection diagrams, and commissioning checklists. Our technical team provides remote support during startup, with on-site services available for major projects.
Q: How do you ensure quality control for coal mill motors?
A: Each unit undergoes hydrostatic testing of cooling circuits, partial discharge measurement for high-voltage models, complete load testing at rated conditions, and ultrasonic inspection of critical structural welds. All test data is documented and provided with delivery.
Q: What is the typical lead time for a custom product?
A: Standard configurations ship within 8-12 weeks. Custom voltage, cooling, or structural modifications may extend this to 14-18 weeks depending on specification complexity.
Contact Us
Reach out to discuss your specific requirements for High Torque Coal Mill Motor: sxmotor@yeah.net
