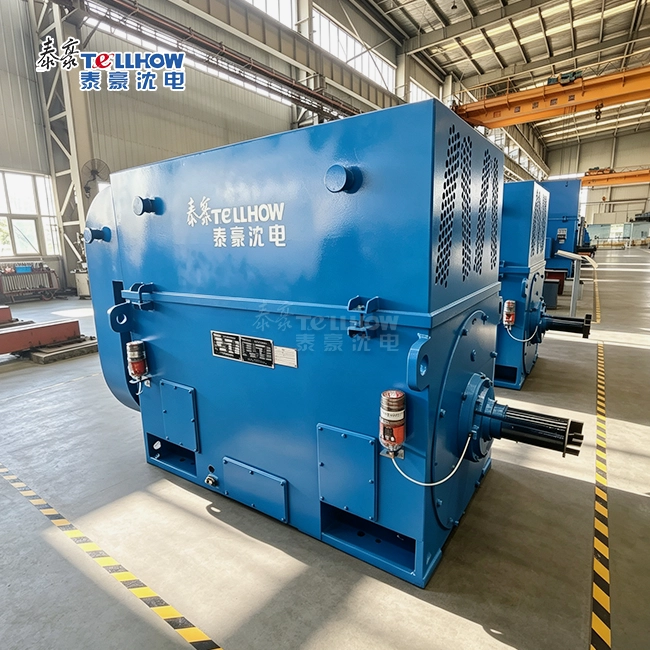

Three Phase AC Motor For Draught Fan

Three Phase AC Motor For Draught Fan

When you're looking to power your industrial draught fan systems, you need a motor built for performance and endurance. Our Three Phase AC Motor For Draught Fan delivers enterprise-grade reliability with power outputs from 160 kW to 20,000 kW and frame sizes spanning H355 to H1400. With IE4+ efficiency ratings and ultra-low vibration levels (≤1.2 mm/s), these motors reduce your energy consumption by 15–20% while maintaining continuous S1 duty cycles. Engineered with Class F/H insulation and IP66 protection, they handle the toughest environmental conditions. Backed by our 8 million kW annual production capacity and precision-balanced rotors to G2.5 standards, you get consistent airflow control and extended operational life.

Why Choose Our Motor for Your Draught Fan Application?

Your draught fan system operates continuously. It demands a motor that won't let you down.

Our motors combine proven squirrel cage induction design with modern efficiency standards. You get self-starting capability without complex auxiliary circuits. The high-grade silicon steel laminations minimize eddy current losses. This means lower heat generation and better performance over time.

The physical construction matters. Cast-iron housings provide superior heat dissipation. Heavy-duty bearings with C3 clearance handle the high radial loads typical in fan applications. You won't experience premature bearing failures that plague lesser motors.

Speed flexibility is critical. With operational ranges from 300 to 3600 rpm and voltage options from 3,000V to 13,800V, you can match the motor precisely to your system requirements. VFD compatibility allows real-time airflow modulation, cutting energy costs significantly during partial-load operation.

Technical Specifications

Here's what you need to know about our motor lineup:

Key Performance Features

Energy Efficiency That Pays Off

You're not just buying a motor. You're investing in lower operating costs. Our IE4+ efficiency ratings mean less electricity consumption every hour your system runs. Over a typical motor lifespan, this translates to substantial savings that far exceed the initial purchase price.

Built for Harsh Environments

Draught fan installations aren't climate-controlled offices. Dust, moisture, and temperature variations are constant challenges. IP66 protection ensures your motor keeps running when others fail. The Class H insulation withstands thermal stress that would degrade inferior systems.

Precision Engineering

Every rotor is precision-balanced to G2.5 limits. This isn't just a specification—it's your guarantee of smooth operation. Low vibration protects your bearings, extends component life, and reduces maintenance interventions. You'll experience fewer unexpected shutdowns.

Modular Design Benefits

Maintenance windows are expensive. Our modular construction allows quick component replacement without complete motor removal. This design philosophy reduces your downtime and keeps your operations running smoothly.

Application Advantages in Draught Fan Systems

Draught fan motors face unique operational demands. High starting torque requirements, continuous duty cycles, and variable load conditions require specialized engineering.

Our Three Phase AC Motor For Draught Fan excel in these conditions. The squirrel cage design provides excellent starting characteristics without complex control systems. The high power factor during full-load operation keeps your electrical infrastructure efficient.

Variable frequency drive compatibility gives you precise airflow control. You can adjust fan speed to match actual process requirements rather than running at full capacity constantly. This flexibility is where significant energy savings accumulate.

The reinforced construction handles the mechanical stresses inherent in fan applications. High radial loads from belt drives or direct coupling don't compromise bearing life or shaft integrity.

Customization for Your Specific Needs

Every installation has unique requirements. We understand that off-the-shelf solutions don't always fit perfectly.

Our engineering team provides comprehensive ODM/OEM services. You can specify custom power configurations, modified mounting arrangements, or specialized environmental protection. Small-batch production runs are available for specialized applications, while our 8 million kW annual capacity handles large-scale deployments.

Insulation class optimization ensures you get the right thermal protection for your operating environment. Structural customization accommodates unusual mounting constraints or space limitations. This flexibility means you get a motor engineered for your application, not a compromise solution.

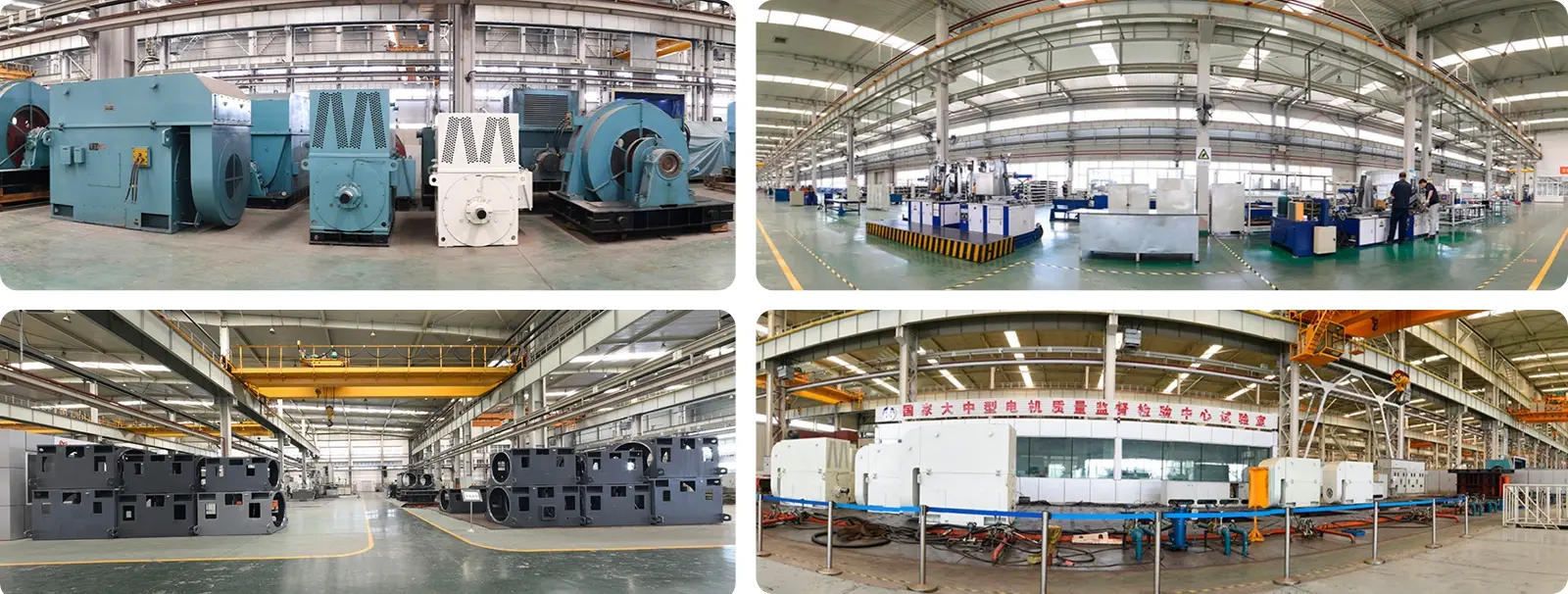

Why Tellhow Shenyang Electric Machine

We're not a startup experimenting with motor design. Since 2011, we've specialized in medium and large electric motors with 49 series and over 2,100 specifications. Our 500 million RMB registered capital supports continuous innovation and quality manufacturing.

Your motor investment is backed by comprehensive global support. Our technical team provides engineering consultation throughout the selection process. After installation, our service network delivers spare parts supply, maintenance support, and lifecycle optimization.

The Three Phase AC Motor For Draught Fan represents our commitment to intelligent manufacturing and sustainable performance. We serve power generation, metallurgy, mining, petrochemical, and environmental protection industries worldwide because our motors deliver measurable value.

Frequently Asked Questions

Q:What makes these motors suitable for continuous draught fan operation?

A:Our motors are rated for S1 continuous duty cycles, which means they can run 24/7 without derating. The advanced cooling systems (IC611, IC616, IC666) maintain optimal operating temperatures even under sustained load. The robust bearing design with C3 clearance handles continuous operation without premature wear.

Q:Can these motors work with existing variable frequency drives?

A:Yes. Our motors are VFD-compatible across the entire power range. The insulation systems withstand the voltage spikes associated with VFD operation. You can implement precise speed control for energy optimization without motor modifications.

Q:What efficiency improvements can I expect compared to older motors?

A:Replacing standard-efficiency motors with our IE4+ units typically delivers 15–20% energy reduction. For a 500 kW motor running 8,000 hours annually, this represents approximately 60,000-80,000 kWh savings per year. Your specific results depend on load profiles and operating conditions.

Q:How do you handle different voltage requirements across international installations?

A:We manufacture motors for voltage ranges from 3,000V to 13,800V with both 50Hz and 60Hz frequency options. Our certifications (CE, UL, VDE, SASO, CCC, PSE, KC) cover major international markets, ensuring compliance with local electrical codes and standards.

Q:What protection do these motors have against environmental contaminants?

A:Standard protection is IP55, with IP66 available for harsh environments. IP66 rating provides complete dust ingress protection and high-pressure water jet resistance. For explosive atmospheres, we offer Ex ec, Ex pxb, Ex pzc, and Ex tb certifications.

Q:What is the typical delivery time for standard and customized motors?

A:Standard configurations typically ship within 4-6 weeks. Custom specifications require additional engineering time, usually 8-12 weeks depending on complexity. Our 190,000 square meter manufacturing facility allows parallel production for faster delivery on large orders.

Contact Us

Email us at sxmotor@yeah.net to discuss your specific requirements for Three Phase AC Motor For Draught Fan.
