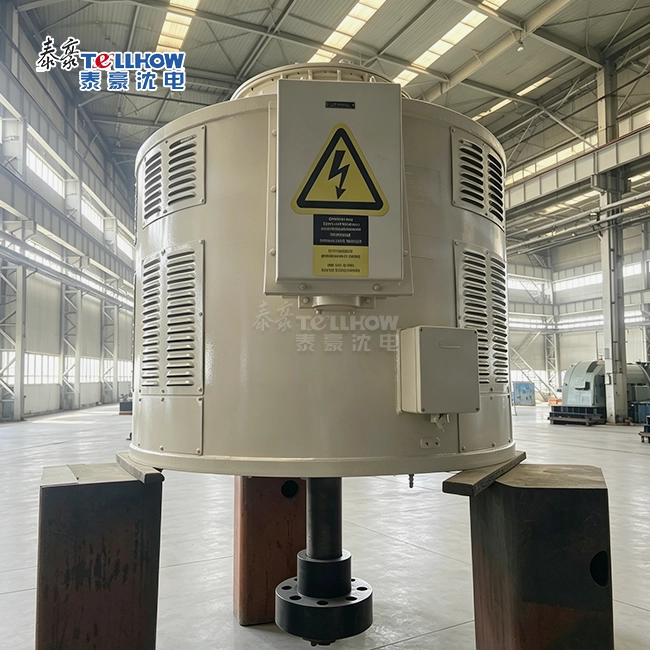

Vertical Synchronous Pump Motor

Vertical Synchronous Pump Motor - High-Efficiency Solution for Industrial Pumping Systems

When your facility demands uncompromising reliability and energy efficiency, our Vertical Synchronous Pump Motor delivers enterprise-grade performance. Manufactured by Tellhow Shenyang Electric Machine Co., Ltd., these precision-engineered motors feature a power range of 500–15,000 kW and voltage ratings up to 10,000V. With synchronous speed stability from 125 to 375 r/min and IP23-IP54 protection grades, they're designed for continuous duty in municipal water supply, flood control drainage, and large-scale irrigation projects. Their DC excitation system enables reactive power adjustment, reducing your facility's energy costs by 15–20% while maintaining exact speed synchronization with grid frequency.

Why Choose Our Synchronous Motor Solution?

Unmatched Energy Efficiency

You're probably tired of watching energy bills climb every quarter. Our motors solve this.

The synchronous design eliminates slip losses entirely. Your rotor speed matches supply frequency exactly. This means every watt you pay for translates into productive work.

The DC excitation system does something special. It adjusts power factor dynamically. Many facilities achieve unity power factor operation. That eliminates expensive utility penalties and reduces infrastructure strain.

Real-world impact? Lower operating costs over decades of service.

Built for Vertical Pump Applications

Traditional horizontal motors can't handle what you face daily. Long shaft configurations create mechanical stress. Axial thrust from pump impellers adds complexity. Water column backflow threatens equipment during shutdowns.

We engineered our Vertical Synchronous Pump Motor specifically for these challenges.

Heavy-duty thrust bearings support combined motor and pump loads. Oil-lubrication systems handle continuous operation. The vertical mounting design (IM8421) saves valuable floor space—critical when retrofitting existing pump stations.

Precision Performance in Demanding Environments

Your operations can't afford speed fluctuations. Process chemistry requires exact flow rates. Cooling systems demand consistent pressure.

Synchronous operation delivers this precision. Speed remains locked to grid frequency. No variation under load changes. No hunting or instability.

The motors feature F-class insulation with B-class temperature rise. Cooling methods IC01 and IC81W maintain thermal stability even in high-humidity pump houses. Protection grades from IP23 to IP54 shield against water ingress and particulate contamination.

Intelligent Design Features

Modern pumping systems need smart solutions. Our motors integrate seamlessly with your automation infrastructure.

Multi-dimensional condition monitoring tracks bearing temperature, vibration signatures, and winding health. PT100 RTDs provide real-time thermal data. Vibration sensors enable predictive maintenance—you address issues before failures occur.

The intelligent adaptive load regulation optimizes performance across varying demand cycles. During partial-load operation, efficiency remains high. That's where you spend most operating hours, so that's where savings accumulate.

Flexible Customization Capability

No two facilities are identical. Your specifications shouldn't be forced into standard packages.

We offer comprehensive ODM/OEM services. Need custom speed ratings? Specific insulation classes for harsh environments? Structural modifications for tight spaces? We handle it.

Our engineering team works directly with you. Small-batch prototypes or large-scale production runs—both receive the same attention to detail. This flexibility comes from our 190,000-square-meter manufacturing facility and 8 million kW annual production capacity.

Technical Specifications

Key Application Scenarios

Municipal Water Infrastructure

Flood control stations require instant response. When storm events hit, your pumps must start reliably under high torque loads.

Our motors excel in intermittent, high-demand cycles. The synchronous design provides superior pull-out torque. You get dependable starting performance even after extended standby periods.

Water treatment booster stations benefit from constant-speed operation. Pressure remains stable across the distribution network. Residents experience consistent service. Your maintenance team faces fewer emergency calls.

Large-Scale Irrigation Projects

Agricultural water diversion systems run continuously for months. Every efficiency point matters when operating 24/7.

This is where synchronous motors prove their value. Eliminating slip losses saves substantial energy over extended run times. Power factor correction reduces demand charges. The financial impact compounds over growing seasons.

Our motors handle the mechanical demands too. Long-shaft pump configurations create complex loading. Hydraulic thrust combines with rotor weight. Our thrust bearing systems are engineered specifically for these combined loads.

Industrial Process Applications

Power plant cooling systems can't tolerate speed variations. Heat exchanger performance depends on precise flow rates. Temperature control demands consistency.

Chemical processing is even more sensitive. Dosing pumps must maintain exact flow to ensure reaction stoichiometry. Speed fluctuations compromise product quality or create safety hazards.

The Vertical Synchronous Pump Motor locks speed to grid frequency. No hunting. No drift. Just steady, reliable operation that your process control systems can depend on.

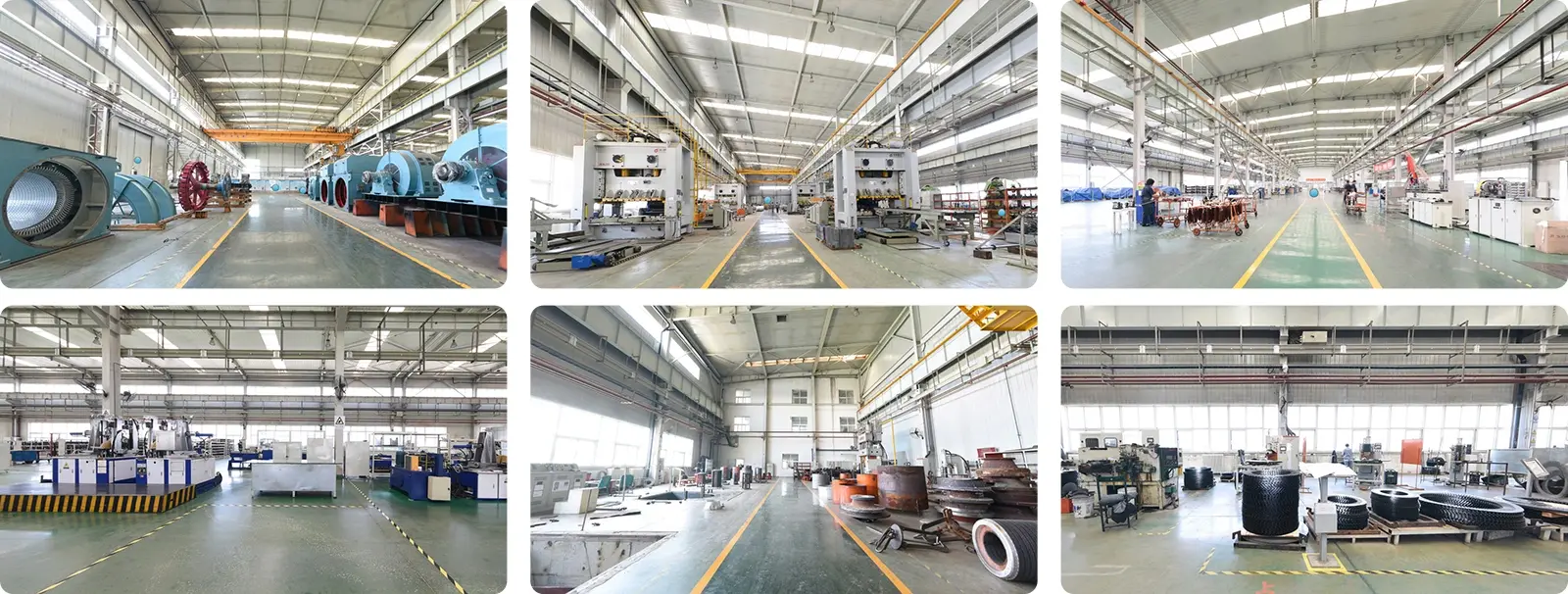

Why Partner With Tellhow Shenyang?

Proven Manufacturing Excellence

Since 2011, we've operated as a modern motor manufacturing enterprise with 500 million RMB registered capital. Our facility spans 190,000 square meters within the Tellhow Shenyang Science and Technology Industry Park.

We don't just assemble motors. We design and manufacture them from core components up. This vertical integration ensures quality control at every stage. It also enables the customization capability that sets us apart.

Comprehensive Product Portfolio

Our 49 series spanning 2,100+ specifications serve diverse industrial needs. Beyond vertical synchronous motors, we produce AC motors, Permanent Magnet Synchronous Motors, frequency-controlled motors, explosion-proof variants, and high-efficiency energy-saving designs.

This breadth means we understand your complete facility needs. We can optimize motor selection across your entire operation, not just individual pumps.

Global Standards Compliance

Our motors comply with CE, UL, VDE, SASO, SNI, PSE, KC, CCC, and various energy-efficiency standards. This ensures you can deploy our equipment globally without regulatory complications.

Whether your project is domestic or international, we deliver products that meet local requirements.

Engineering Support Throughout Your Project Lifecycle

Purchasing a motor is just the beginning. We provide engineering consultation during specification development. Our team helps you select optimal configurations for your specific application.

After installation, our global service network delivers localized technical support. We maintain stable spare parts supply chains. Lifecycle maintenance services keep your equipment running at peak efficiency for decades.

Frequently Asked Questions

Q: Why should I choose a synchronous motor over an induction motor for my pumping application?

A: Synchronous motors deliver higher efficiency and improve your facility's power factor. For large-scale operations running continuously, this translates to significant energy cost savings. The ability to adjust reactive power also eliminates the need for separate compensation equipment, simplifying your electrical infrastructure.

Q: How do your motors handle the axial thrust in vertical pump configurations?

A: We equip our motors with heavy-duty thrust bearings—typically oil-lubricated designs—specifically rated to support the combined weight of the motor rotor, pump impeller, and hydraulic downward force. Bearing selection is customized based on your pump specifications and operating conditions.

Q: Can these motors operate with variable frequency drives?

A: Yes, when specified for VFD operation. We provide reinforced insulation systems to handle harmonic content and enhanced cooling for lower-speed operation. Discuss your VFD requirements with our engineering team during the specification phase for optimal motor design.

Q: What maintenance does the excitation system require?

A: For brushless excitation systems, we recommend annual inspection of diodes and varistors. Brushed systems require carbon brush inspection every 3,000 operating hours with replacement as needed based on wear. Our service documentation provides detailed inspection procedures.

Q: What happens during a grid frequency drop?

A: The motor maintains synchronous operation relative to the new frequency. However, you must ensure the load torque remains below the motor's pull-out torque at the reduced frequency. Our engineering team can analyze your specific system to ensure adequate margin under all grid conditions.

Q: Why is a non-reverse ratchet necessary in some installations?

A: It prevents backward rotation caused by water column backflow when the motor stops. Reverse rotation can damage mechanical components and create safety hazards. We specify NRR devices based on your pump head and system configuration.

Q: How do you address moisture in outdoor pump station installations?

A: We integrate internal space heaters that operate during standby periods. The motor enclosure meets Weather Protected (WPI/WPII) or TEFC standards as appropriate. Proper drainage weep holes prevent water accumulation. IP54 protection provides robust moisture barrier for harsh environments.

Q: Can I monitor bearing health remotely?

A: Absolutely. Our motors can be equipped with PT100 RTDs in bearings and vibration sensors. These integrate with your SCADA or plant management system for real-time predictive maintenance. You'll identify developing issues before they become failures.

Make the Smart Investment Today

Ready to discuss your specific requirements for Vertical Synchronous Pump Motor?

Contact our engineering team at sxmotor@yeah.net
