Ball Mill Motor: Industrial-Grade Solutions for Heavy-Duty Grinding Applications

When your grinding operations demand uncompromising reliability and performance, choosing the right ball mill motor makes all the difference. Tellhow Shenyang Electric Machine delivers purpose-built motors with high starting torque, steady speed control, and adjustable power factor specifically engineered for mining and cement industries. Our motors span a power range of 400-15,000 kW across multiple voltage grades (3kV-11kV), featuring pole configurations from 20 to 60 poles and speeds ranging 100-300 r/min. With proven capabilities in driving low-speed, high-capacity equipment and backed by our 8 million kW annual production capacity across 190,000 square meters of advanced manufacturing facilities, we provide the robust foundation your milling circuit requires for continuous 24/7 operation.

Understanding Your Grinding Power Requirements

You face unique challenges in mill operations. The massive inertia from a fully loaded drum demands exceptional starting capability. Harsh environments with abrasive dust and temperature extremes test equipment limits daily. Continuous operation cycles leave no room for unexpected downtime.

Our motors address these pain points head-on. They deliver high locked-rotor torque to overcome static friction during startup. Reinforced frames with protection grades IP00 through IP55 shield critical components from contaminants. Advanced insulation systems (Class F or H) manage thermal stress effectively.

The design philosophy centers on heavy-duty applications. You get established technology with proven track records. Cost-effective solutions don't compromise on performance. Simple installation and maintenance procedures minimize operational complexity.

Technical Specifications That Drive Performance

Your grinding operations need ball mill motor engineered to exact specifications. Our comprehensive parameter range ensures you find the perfect match:

The motors accommodate both drilled shaft and non-drilled shaft configurations. Drilled shaft versions work with air clutches for specialized applications. Non-drilled models provide higher starting ability for standard installations.

You can start motors directly at full voltage or implement soft start at lower voltage. This flexibility lets you match startup procedures to your specific electrical infrastructure and mechanical requirements.

Why Our Motors Excel in Demanding Environments

Your operations benefit from motors designed with mining and cement applications in mind. High starting torque overcomes the resistance of loaded drums filled with grinding media and material. Steady speed maintains consistent particle size distribution throughout the grinding cycle.

Minimal noise and vibration protect surrounding equipment and structures. This smooth operation extends bearing life and reduces maintenance interventions. Your team spends less time on repairs and more time on productive operations.

The motors integrate seamlessly with existing systems. Standard mounting configurations simplify installation. Multiple cooling methods adapt to your facility's environmental conditions. Wide voltage and frequency options ensure compatibility across global power standards.

Energy efficiency translates directly to operational cost savings. Our proprietary designs reduce energy consumption by 15-20% compared to conventional motors. Over years of continuous operation, these savings compound significantly.

Built for Global Compliance and Quality Assurance

Your purchasing decisions require confidence in product quality and regulatory compliance. Our motors meet international certifications including EU CE, IEC standards, and GB national specifications. This ensures safety, reliability, and environmental compliance across multiple regions.

Manufacturing quality stems from high-precision processes and rigorous inspection protocols. Each ball mill motor undergoes comprehensive testing including insulation resistance verification, dynamic rotor balancing to ISO 1940 standards, and full-load performance validation.

Our proprietary magnetic circuit designs and high-efficiency control algorithms result from continuous technological innovation. These patents protect genuine advancements that deliver measurable performance benefits to your operations.

Customization Meets Your Unique Challenges

No two grinding operations face identical requirements. You might need specific voltage configurations for remote mining sites. Your cement plant may require specialized cooling for high-temperature zones. Chemical processing applications often demand explosion-proof enclosures.

Our ODM/OEM capabilities transform these challenges into tailored solutions. We customize power ratings, speed ranges, insulation classes, and protection grades. Brand-specific appearance requirements and contract manufacturing at various scales accommodate your market positioning needs.

Technical consultation begins before purchase and continues throughout the motor's service life. Our global support network ensures timely assistance regardless of installation location. Spare parts availability prevents extended downtime during maintenance cycles.

Applications Across Heavy Industry Sectors

Mineral Processing: Remote mines at high altitudes present harsh operating conditions. Motors must resist abrasive ore dust while maintaining performance despite fluctuating power grids. Our robust designs deliver reliable operation in gold, copper, and other metal ore grinding applications.

Cement Manufacturing: Clinker pulverization occurs in high-temperature environments near kilns. Motors require exceptional thermal management while maintaining constant speed despite variable feed sizes. This consistency ensures uniform cement quality batch after batch.

Chemical Production: Precision grinding demands fine-tuned speed control. Motors paired with Variable Frequency Drives allow adjustment of grinding parameters for specific material properties. This precision helps meet strict particle size specifications for pharmaceutical and specialty chemical applications.

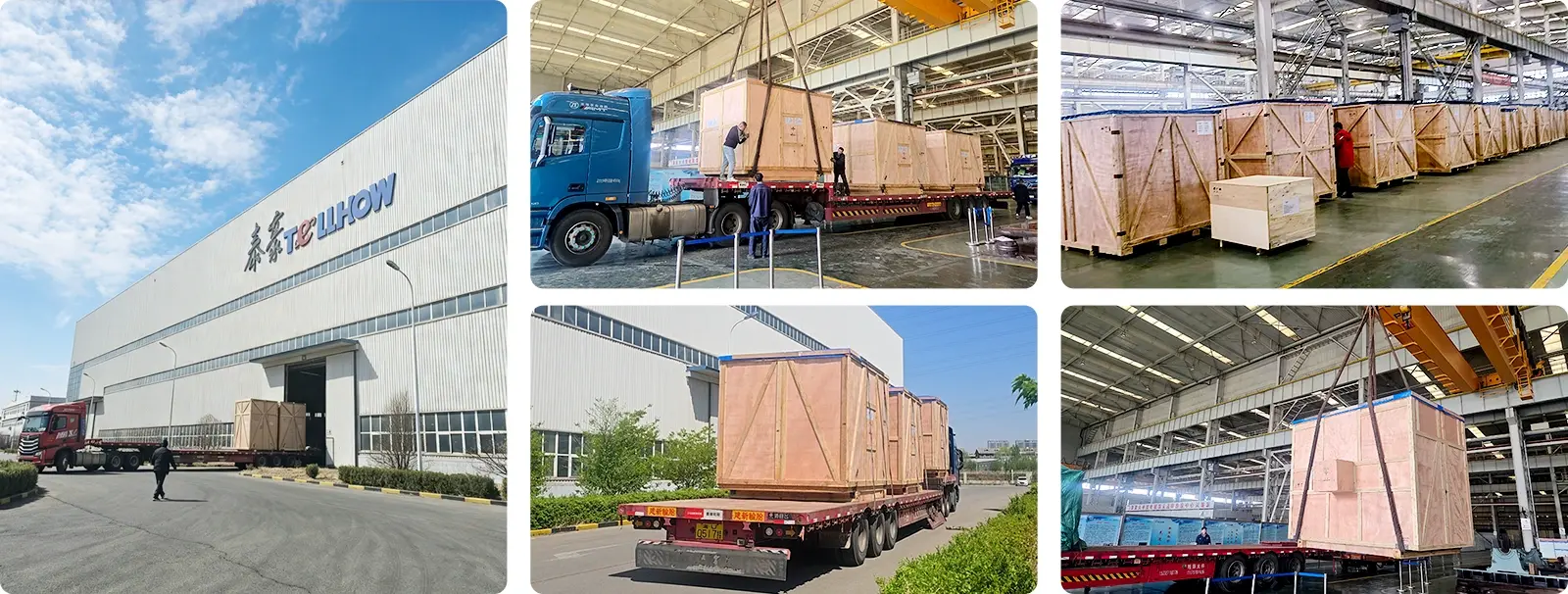

Partner With Proven Expertise

Tellhow Shenyang Electric Machine combines over a decade of specialized manufacturing experience with advanced technological capabilities. Our 500 million RMB registered capital and comprehensive product portfolio of 49 series with over 2,100 specifications demonstrate our commitment to meeting diverse industrial needs.

We don't just supply motors—we provide complete solutions. From initial specification consultation through installation support and lifetime maintenance, our team stands ready to ensure your grinding operations achieve maximum productivity and reliability.

Frequently Asked Questions

Q:What advantages do synchronous motors offer for ball mill applications?

A:Synchronous motors provide power factor correction benefits and higher efficiency at the low speeds typical in grinding operations. They work particularly well in large installations where power quality matters. The trade-off involves more complex control systems compared to induction motors.

Q:How do you manage the high starting current typical of these applications?

A:We recommend liquid resistance starters, soft starters, or Variable Frequency Drives depending on your specific requirements. These solutions limit inrush current and reduce mechanical stress on gearboxes and couplings. Your electrical infrastructure capacity and budget guide the optimal choice.

Q:What lifespan can I expect with proper maintenance?

A:Quality motors with regular lubrication, vibration monitoring, and clean cooling air routinely achieve 20-30 years of service. Harsh environments may reduce this timeframe, but preventive maintenance programs significantly extend operational life. We provide guidance on optimal maintenance schedules.

Q:How does dust affect motor performance and longevity?

A:Abrasive dust causes insulation failure and bearing problems if not properly addressed. We implement specialized seals and filtered cooling systems to protect critical components. Higher protection grades (IP54/IP55) provide additional defense in extremely dusty environments. Regular inspection of seals and filters maintains this protection.

Q:Can these motors handle both wet and dry grinding processes?

A:Yes, the fundamental motor design accommodates both applications. The difference lies in control logic and torque profiles, which we adjust via Variable Frequency Drives. Wet grinding's different material density and viscosity require modified operating parameters for optimal performance.

Q:What's the difference between drilled shaft and non-drilled shaft motors?

A:Drilled shaft motors accommodate air clutches for applications requiring disengagement capability. They have lower starting torque (0.6 ratio vs. 1.7). Non-drilled shaft motors provide higher starting ability for standard direct-coupled installations. Your application requirements determine the best choice.
