Y Series High voltage Motor

High speed, high power density, and reliable operation. The welded steel frame ensures stiffness and lightweight design, while the low-loss silicon steel cores increase efficiency. F-class VPI-insulated stator coils and copper or copper alloy rotors provide mechanical strength, accurate alignment, and efficient heat dissipation, reducing vibration and temperature rise during high-speed operation and extending motor life.

Product Description

Y Series High Voltage Motor – Reliable Industrial Power Solutions

You can count on the Tellhow Shenyang Electric Machine Y Series High voltage Motor to work reliably in businesses. This motor line has frame sizes from H355 to H1120, power rates from 160 kW to 35,000 kW, and voltage ranges from 690V to 15,000V. It has a high-tech electromagnetic design and a strong mechanical build. The welded steel frame keeps the structure strong while keeping the profile light. The F-class VPI-insulated stator coils provide excellent heat performance and long service life in 2 to 24 pole configurations.

Why Choose Our High Voltage Motors?

Engineered for Maximum Efficiency

Motors that won't let you down are needed for your work. Our high voltage motor options have low-loss silicon steel cores that make them 15% to 20% more energy efficient than regular designs. This means that your building will have lower energy costs and a smaller carbon footprint.

The rotor is made of copper or a copper metal, which makes it better at conducting electricity and stronger. You'll be able to tell the difference in how smoothly the torque is delivered and how little sound there is during constant operation.

Built to Last in Harsh Environments

Weak tools don't work well in industrial setups. So, we made the Y Series High Voltage Motor with welded steel frames that don't bend when they're under a lot of heat or weight. The exact aligning system keeps the air gap constant, which keeps the system from losing performance over time.

Keeping an eye on the temperature is very important for motor life. Our improved cooling methods, such as the IC01, IC611, IC616, IC81W, and IC86W setups, get rid of heat quickly and effectively, even when they are under a lot of stress. This controls the working temperature and greatly increases the life of the parts.

Flexible Protection Levels

Protection rules need to be different for each purpose. We offer different IP grades so that we can fit your needs:

IP23: Basic safety for controlled indoor settings
IP44: splash-proof for sites that are partly outside
IP54: Protects against dust for fairly hard situations
IP55: Complete defense against water and dust jets

Because of this, you won't have to pay for safety you don't need, and you'll still have enough protection where it matters.

Why Choose Our High Voltage Motors?

Technical Specifications

Parameter	Range/Options
Basic Models	Y, YKS, YKK
Frame Size	H355 – H1120
Power Output	160 kW – 35,000 kW
Pole Configurations	2, 4, 6, 8, 10, 12, 16, 20, 24 poles
Voltage Ratings	690V, 3,300V, 6,000V, 6,600V, 10,000V, 11,000V, 13,800V, 15,000V
Frequency	50 Hz / 60 Hz
Protection Class	IP23, IP44, IP54, IP55
Cooling Methods	IC01, IC611, IC616, IC81W, IC86W
Insulation Class	F-class (standard)

Industries We Serve

Power Generation

Our motors work well with steady job cycles, so they don't matter if they're running extra systems in steam plants or feed pumps in hydroelectric facilities.

Mining & Metallurgy

Motors for crushers, ball mills, and conveyor systems need to be able to handle shock loads and run all the time. For these uses, the Y Series High Voltage Motor has the power and mechanical strength that are needed.

Petrochemical Processing

In factories, pumps, compressors, and agitators have to work in tough environments. Our motors are reliable enough to meet the standards of uptime that your process needs. They also have cooling systems that can handle room temperature and keep the insides from getting dirty.

Water Treatment & Environmental Protection

Large-scale pumping stations and wastewater treatment plants need motors that work well for years with little upkeep. Our high-efficiency designs help you reach your environmental goals while lowering your running costs.

Cement & Building Materials

Load shapes that are hard to handle are made by rotary kilns, vertical mills, and material handling systems. In these situations, you'll like how our motors let you accurately control the speed and protect against overload.

Industries We Serve

What Makes Our Motors Different?

Precision Manufacturing

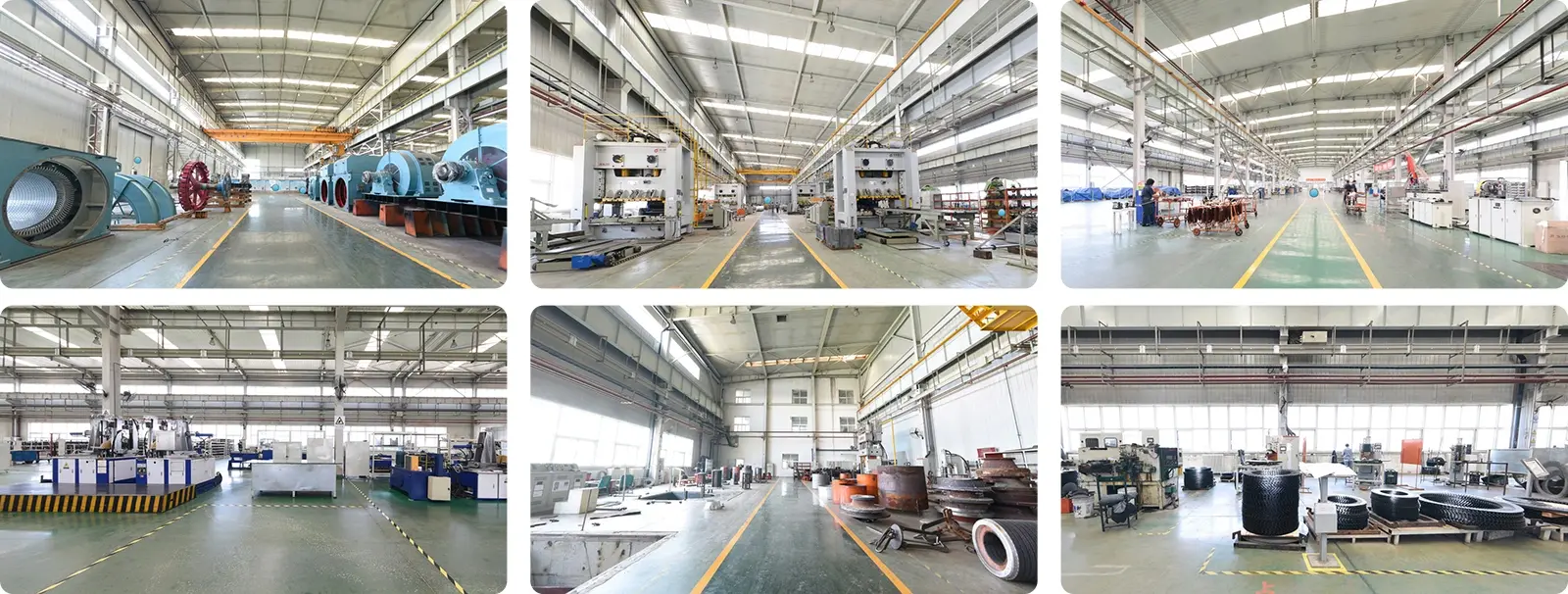

Our 190,000-square-meter factory takes great care to make sure that every motor passes strict quality checks. We keep very close limits on important measurements, which makes sure that the air gap is even and there is little shaking across the whole speed range.

Advanced Insulation System

The F-class VPI (Vacuum Pressure Impregnation) insulation process makes a shield around the stator windings that doesn't let water in. This method gets rid of empty spaces and greatly boosts dielectric strength, safeguarding your investment in places with a lot of moisture or harsh chemicals.

Intelligent Load Adaptation

In modern industry, processes rarely work at full speed all the time. Our motor designs have magnetic circuits that are designed so that they stay highly efficient over a wide range of working conditions, not just at their rated conditions.

Global Standards Compliance

These motors have been certified by CE, CCC, and other international energy-efficiency standards, so you can use them in different areas without worrying about legal issues.

What Makes Our Motors Different?

Customization Options

Not every application is the same. That's why we offer a lot of customization:

Power and speed variations: meet the exact needs of your process
Different connection and fitting needs can be met by different shaft configurations
Positioning of the terminal box: flexible placement in places with limited room
Special Coatings: Better protection to rust in chemical or coastal settings
Extra equipment includes starting systems, activation units, and monitoring monitors

Our tech team works with you one-on-one to figure out the best setup for your needs.

Service & Support

Your relationship with us doesn't end at delivery. We provide:

Technical Consultation: Application-specific guidance from experienced engineers
Installation Assistance: On-site support to ensure proper commissioning
Spare Parts Availability: Critical components stocked for rapid replacement
Maintenance Programs: Scheduled inspections to maximize motor lifespan

This comprehensive support network minimizes downtime risks and keeps your operations running smoothly.

Frequently Asked Questions

Q: What's the typical lead time for standard models?

A: Standard configurations typically ship within 8-12 weeks. Customized specifications may require additional time depending on complexity.

Q: Can these motors operate at variable frequency?

A: Yes, our YKS and YKK variants are specifically designed for variable frequency drive applications, with reinforced insulation systems to handle VFD voltage stresses.

Q: How do I select the right cooling method?

A: Selection depends on ambient conditions and installation constraints. IC01 suits indoor controlled environments, while IC81W/IC86W air-to-air systems work better in dusty or high-temperature locations. Contact our team for application-specific recommendations.

Q: What maintenance intervals do you recommend?

A: Under normal operating conditions, perform bearing lubrication every 3,000-5,000 hours and comprehensive inspection annually. Harsh environments may require more frequent checks.

Q: Do you support international voltage and frequency standards?

A: Absolutely. We manufacture motors for both 50 Hz and 60 Hz networks, with voltage ratings covering global power distribution standards from 690V to 15,000V.

Q: What warranty coverage is provided?

A: Standard warranty covers manufacturing defects for 18 months from commissioning or 24 months from delivery, whichever comes first. Extended coverage options are available.

Your Next Step

Our technical team is ready to discuss your specific requirements for Y Series High voltage Motor.
