Low-Speed High-Torque Direct-Drive Permanent Magnet Generator

Our low-speed high-torque direct-drive permanent magnet generator works great when your business needs to make sure it has power without having to deal with a lot of complicated mechanics. This generator, made by Tellhow Shenyang Electric Machine Co., Ltd., doesn't need a clutch because it uses direct connection technology. It can output between 200 kW and 30,000 kW and has shaft heights between 355 mm and 1250 mm. Compared to traditional methods, it is 15-20% more efficient. Our design with a lot of poles makes sure that force is delivered smoothly even at speeds below 100 RPM. This makes it perfect for use in wind mills, water plants, and marine energy uses.

Why Choose Direct-Drive Technology?

Unmatched Mechanical Simplicity

Gearboxes are needed for traditional engines, which cause noise, friction, and repair problems. With our direct-drive system, the rotor is directly linked to the shaft of your turbine. This gets rid of more than 70% of the moving parts that are in geared systems.

You get:

• No oil changes for the gearbox
• The gear teeth don't wear out.
• Lower amounts of noise and shaking
• Less expensive long-term running costs

Enhanced Energy Efficiency

Our fixed magnet rotor design keeps magnetic fields stable even when no outside power is applied. In other words, you're not burning energy just to make energy.

Key benefits include:

• 15 to 20 percent less energy used
• The power factor is higher when the load changes.
• Very little heat is produced during running
• Performance that stays the same in tough conditions

Built for Low-Speed Applications

A lot of sources of green energy turn slowly. Wave Generators, low-head water turbines, and large-diameter wind turbines can all work at speeds that are too fast for regular engines.

This problem is solved by our high-pole-count design:

• Best power transfer between 20 and 150 RPM
• Easy to start up with no cogging problems
• A lot of power and frequency options
• Quickly adapting to changes in load

Technical Specifications

Core Advantages You Can Rely On

Intelligent Monitoring Integration

Modern manufacturing needs to be able to see what's going on in real time. Our engines can check their health in a number of different ways, including:

• Putting temperature sensors in key places
• Checking for bearing strength through vibration
• Back-EMF testing ports to check the magnetic flux
• Smart methods for controlling load

With these tools, you can tell when repair is needed before something breaks.

Superior Quality Control

Every low-speed high-torque direct-drive permanent magnet generator undergoes rigorous testing:

Magnetic Stability Tests: We make sure that permanent magnets keep their flux density even when the temperature changes. Our quality team makes sure that magnets never get close to their Curie point while they are working.

Temperature Rise Validation: To make sure they are thermally stable, cooling systems are tried under 125% overload situations.

Insulation Integrity: Vacuum Pressure Impregnation (VPI) methods keep stator windings safe in damp coastal areas.

Cogging Torque Measurement: To make sure a smooth start-up, we record and try to reduce torque ripple at low speeds.

Salt Spray Testing: Specialized anti-corrosive coats are put through 1000-hour salt fog exposure tests for use in coastal and ocean environments.

Customization That Fits Your Project

Not every energy project is the same. So, here are all the ODM/OEM services we offer:

• Custom settings for voltage and frequency
• Customized ideas for cooling systems for harsh areas
• Changes to the shaft contacts for certain turbine gears
• Customized merging of computer systems
• Specific building sizes for setups with limited room

From the idea stage to the final finishing, our tech team works directly with you.

Proven Applications Across Industries

Direct-Drive Wind Power Generation

Getting rid of gears is very helpful for big wind farms. The blades of your turbine are directly connected to the rotor of our generator, so they can capture energy with little waste.

Perfect for:

• Offshore wind farms where maintenance access is limited
• Low-wind-speed regions requiring large rotor diameters
• Retrofit projects upgrading geared systems

Low-Head Hydropower Stations

Run-of-river and tide systems use water speeds that are too low for regular engines to work. Our design with a lot of poles gives you the regulated power at the speed that your water engine naturally spins at.

Advantages include:

• No speed-increasing gearbox required
• Minimal civil engineering modifications
• Silent operation for environmentally sensitive areas

Wave and Tidal Energy Systems

Marine energy extraction equipment faces extreme conditions. Our generators feature:

• Enhanced corrosion protection for saltwater environments
• Sealed construction meeting IP56 standards
• Robust bearing systems handling multi-directional forces

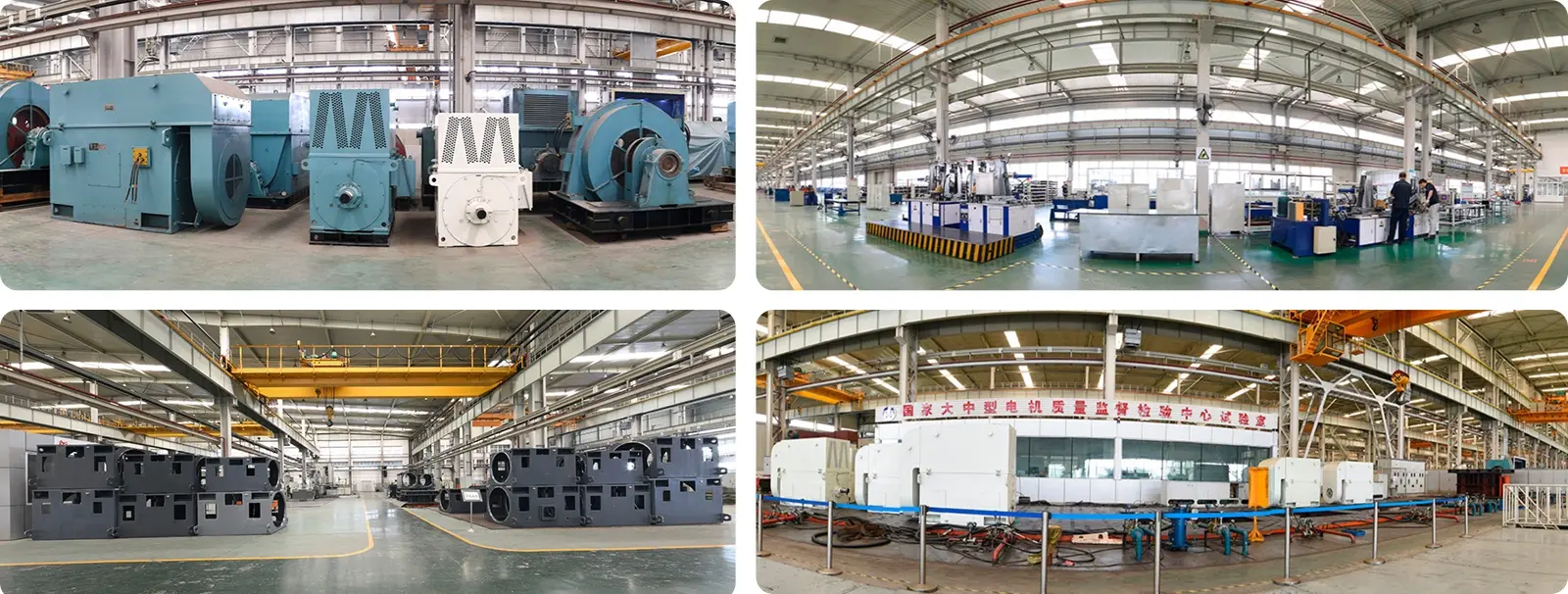

Why Tellhow Shenyang Electric Machine?

Manufacturing Excellence Since 2011

Our 190,000-square-meter production facility combines traditional craftsmanship with intelligent manufacturing. With an annual capacity of 8 million kW and over 2,100 product specifications, we maintain the flexibility of a custom shop with the consistency of mass production.

Global Standards Compliance

Your project likely requires specific certifications. We hold:

• CE certification for European markets
• UL approval for North American installations
• IEC 60034 compliance for international projects
• Energy efficiency standards meeting IE4 and IE5 classifications

This ensures seamless regulatory approval wherever you operate.

Full Lifecycle Support

From initial consultation through decades of operation, we're your partner:

• Engineering design assistance and simulation modeling
• Factory acceptance testing with customer witnesses
• Installation supervision and commissioning services
• Spare parts availability with 48-hour global shipping
• Remote diagnostics and troubleshooting support

Proven Track Record

Our motors and generators serve critical applications across power generation, metallurgy, mining, petrochemicals, and water treatment industries. This cross-industry experience means we understand the unique challenges your sector faces.

Technical Innovation You Can Trust

Our R&D team continuously advances permanent magnet generator technology:

Patented Magnetic Circuit Structures: Optimized flux paths reduce core losses while improving torque density.

Advanced Thermal Management: Computer-modeled cooling channels ensure even temperature distribution, preventing hotspots that reduce magnet life.

High-Precision Manufacturing: CNC machining centers maintain air gap tolerances within 0.5mm across meter-diameter rotors, critical for minimizing cogging torque.

Intelligent Control Algorithms: Our optional control systems feature maximum power point tracking for wind applications and grid synchronization capabilities for parallel operation.

These innovations translate directly into better performance and longer life for your installation.

Make the Smart Investment

Choosing a low-speed high-torque direct-drive permanent magnet generator means investing in proven technology that reduces both initial complexity and ongoing costs. Your operation benefits from higher efficiency, lower maintenance, and greater reliability compared to geared alternatives.

With Tellhow's manufacturing expertise, comprehensive customization options, and global support network, you're not just buying equipment—you're gaining a long-term partner committed to your project's success.

Frequently Asked Questions

Q: How does a direct-drive generator handle variable wind speeds?

A: Our permanent magnet design naturally produces voltage proportional to rotational speed. When paired with a power converter (which we can supply), you get stable grid-quality power across a 3:1 speed range. The intelligent control system adjusts load automatically to maintain optimal efficiency.

Q: What maintenance does the generator require?

A: The direct-drive configuration is nearly maintenance-free. We recommend annual inspections of bearing lubrication and electrical connections. Unlike geared systems requiring 6-month oil changes, your maintenance costs drop by approximately 60% over the equipment's 20-year design life.

Q: Can permanent magnets lose strength over time?

A: We use rare-earth NdFeB magnets with exceptional thermal stability. Under proper operating conditions (below 120°C winding temperature), demagnetization is negligible. Our quality control includes accelerated aging tests simulating 25 years of operation to verify long-term magnetic performance.

Q: How do you ensure consistent quality across large production runs?

A: Every unit undergoes back-EMF testing to confirm magnetic flux consistency across all phases. We measure loop resistance (typically < 40 μΩ) to prevent thermal issues. Dimensional accuracy is verified using coordinate measuring machines, ensuring assembly precision within 0.02mm tolerances.

Q: What happens if the cooling system fails?

A: Temperature sensors trigger automatic load reduction before critical limits are reached. The generator can operate at 60% capacity using natural convection alone, allowing controlled shutdown without damage. This fail-safe design protects your investment.

Q: Is international shipping and installation support available?

A: Absolutely. We maintain a global service network providing localized technical support, spare parts supply, and commissioning assistance. Our engineering team has successfully deployed generators across 47 countries, with comprehensive documentation in multiple languages.

Contact Us

Ready to discuss your specific requirements for low-speed high-torque direct-drive permanent magnet generator? Reach out to our engineering team at sxmotor@yeah.net
