Positive pressure increased safety synchronous motor

Positive Pressure Increased Safety Synchronous Motor

When your facility operates in hazardous zones with explosive gases or combustible dust, you need more than standard protection. Our Positive pressure increased safety synchronous motor delivers enterprise-grade safety through dual protection technology. Combining Ex p pressurization with Ex e increased safety design, it maintains internal overpressure that blocks external hazards while eliminating internal ignition risks. Serving power plants, petrochemical complexes, and mining operations across 50+ countries, these motors offer precise synchronous control with power outputs from 200 kW to 30,000 kW. With shaft heights spanning 355-1250 mm and backed by our 8 million kW annual production capacity, you get reliable performance where failure isn't an option.

What Makes Our Positive Pressure Increased Safety Synchronous Motor Different

Dual Protection Technology

Your operations demand fail-safe protection. Our motors integrate two independent safety systems. The positive pressure system continuously supplies clean air or inert gas, maintaining internal pressure 50-100 Pa above ambient. This creates a physical barrier preventing explosive mixtures from entering the motor housing.

The increased safety design eliminates potential ignition sources internally. Enhanced insulation, precision-engineered clearances, and temperature-controlled components ensure no sparks or dangerous heat during normal operation.

Intelligent Pressure Management

You can't afford unexpected shutdowns. Our advanced control system monitors internal pressure in real-time. Before each startup, the automated purge cycle flushes the enclosure with five times its internal volume. This removes any accumulated gases.

Dual pressure sensors provide redundant monitoring. If pressure drops below the safety threshold, the system triggers immediate alarms and controlled shutdown sequences. You maintain safety while protecting your investment.

Synchronous Precision Performance

Your process requires consistent speed. Unlike asynchronous motors that vary with load, our synchronous design maintains exact rotational speed regardless of demand fluctuations. The rotor locks to the rotating magnetic field, delivering rock-solid stability.

This synchronous operation brings additional benefits. Power factor typically exceeds 0.95, reducing reactive power penalties. You see lower electrical costs and improved grid stability. For large installations, these savings compound significantly over the motor's 20+ year service life.

Technical Specifications

Key Performance Features

Energy Efficiency You Can Measure

Every kilowatt matters to your bottom line. Our optimized magnetic circuit design and advanced control algorithms reduce energy consumption by 15-20% compared to conventional explosion-proof motors. For a 5,000 kW motor running 8,000 hours annually, this translates to substantial cost savings.

High-efficiency silicon steel laminations minimize core losses. Precision-wound stator coils reduce copper losses. Enhanced cooling systems maintain optimal operating temperatures, preserving efficiency throughout the load range.

Built for Harsh Environments

Your facility presents unique challenges. Our robust construction handles temperature extremes from -40°C to +60°C ambient. The sealed housing protects against moisture, salt spray, and corrosive chemical atmospheres.

Vibration-resistant bearings and reinforced shaft designs withstand the mechanical stress of continuous heavy-duty operation. Low-noise operation stays below 85 dB(A), meeting workplace safety standards without additional sound dampening.

Smart Monitoring Integration

Modern operations require real-time visibility. Our Positive pressure increased safety synchronous motor integrate seamlessly with industrial control systems. Standard interfaces support Modbus, Profibus, and Ethernet/IP protocols.

Built-in sensors monitor bearing temperature, winding temperature, vibration levels, and pressure status. You receive early warnings of potential issues before they escalate into costly failures. Predictive maintenance becomes practical and effective.

Customization Capabilities

Tailored to Your Application

No two facilities are identical. Our engineering team works with you to configure motors matching your exact requirements. Custom voltage ratings accommodate your power distribution infrastructure. Speed modifications align with your process demands.

Need special mounting configurations? We design custom flanges, feet, and coupling arrangements. Specific cable entry positions? We position terminal boxes wherever your installation requires.

OEM/ODM Partnership

Large-scale projects benefit from our flexible manufacturing capabilities. Whether you need small batches of specialized units or volume production for standardized designs, our 190,000 square meter facility handles both efficiently.

Our 500 million RMB registered capital and established supply chains ensure stable delivery schedules. From prototype development through full production, you work with experienced engineers committed to your success.

Quality Assurance

Rigorous Testing Protocol

Every motor undergoes comprehensive validation before shipment. Our five-point inspection process exceeds international standards:

Pressure Leakage Testing verifies enclosure integrity under static and dynamic conditions. We measure leakage rates to confirm sustained overpressure capability.

Purge Validation confirms the control system calculates and executes proper purge volumes. We simulate startup conditions to verify explosive gas removal.

Automatic Shutdown Testing validates pressure sensor accuracy and safety interlock functionality. We intentionally trigger pressure loss to confirm proper protective responses.

Temperature Rise Testing measures component temperatures under peak load conditions. All surfaces remain within specified Temperature Class limits, typically T3 or T4.

Dielectric and Partial Discharge Testing validates insulation integrity. We apply test voltages exceeding operating levels to confirm increased safety compliance.

International Certification

Your projects may span multiple countries. Our motors carry certifications meeting global standards: CE, UL, VDE, SASO, SNI, PSE, KC, and CCC. ATEX and IECEx certification documentation accompanies each unit, simplifying your approval processes.

Industry Applications

Petrochemical Operations

Refineries, chemical plants, and gas processing facilities trust our motors for critical rotating equipment. Compressors, pumps, and fans operate safely in Zone 1 areas where hydrocarbon vapors present constant ignition risks.

Mining Operations

Underground and surface mining environments contain explosive coal dust and methane. Our Positive pressure increased safety synchronous motor power ventilation fans, conveyors, and processing equipment where conventional motors pose unacceptable hazards.

Power Generation

Gas turbine auxiliaries, fuel handling systems, and cooling tower fans require explosion-proof protection. Synchronous operation provides grid-quality power factor correction, supporting stable electrical distribution.

Environmental Systems

Wastewater treatment facilities handling biogas and chemical processing plants managing volatile compounds benefit from positive pressure protection without sacrificing operational efficiency.

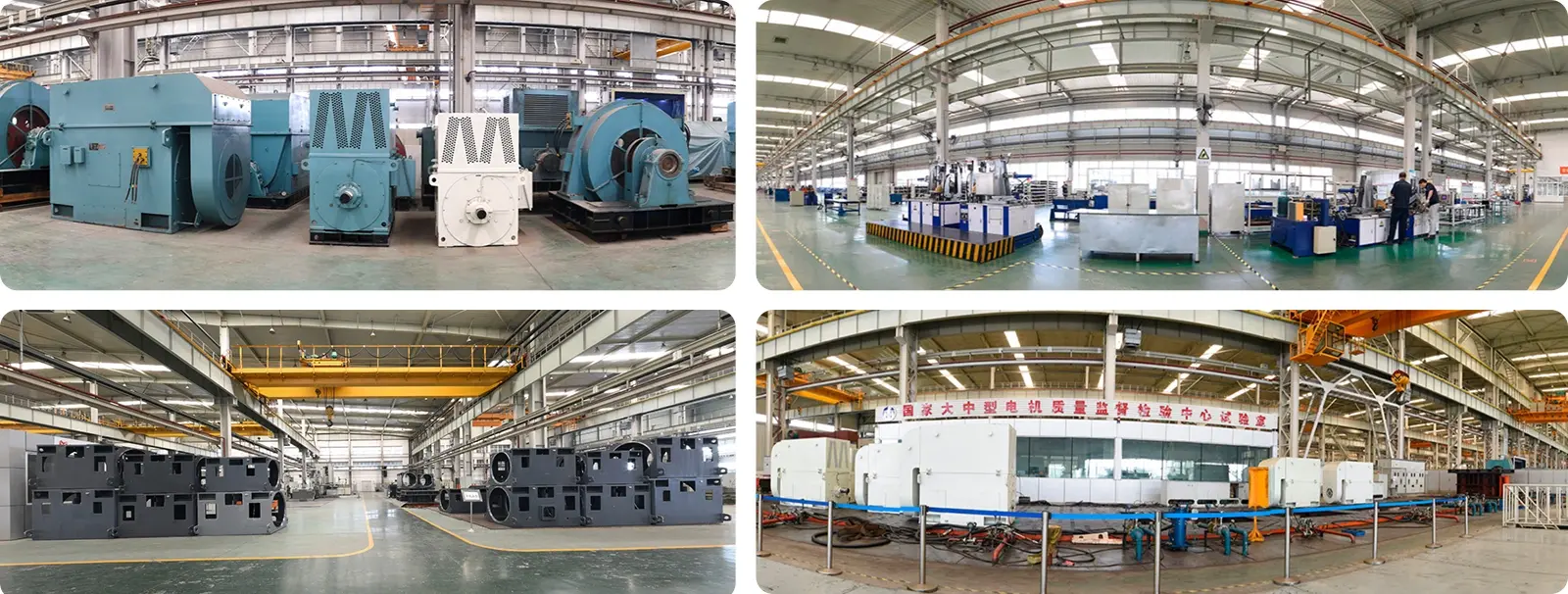

Why Choose Tellhow Shenyang

Proven Manufacturing Excellence

Established through the 2011 integration of industry leaders, we combine decades of motor manufacturing expertise with modern production capabilities. Our facility produces motors serving power generation, metallurgy, mining, construction materials, and environmental protection industries worldwide.

Comprehensive Product Portfolio

Beyond explosion-proof motors, our 49 series spanning 2,100+ specifications include AC motors, Permanent Magnet Synchronous Motors, frequency-controlled motors, and high-efficiency energy-saving motors. Complete supporting systems for motor starting, excitation, compensation, and speed control equipment come from a single trusted source.

Global Support Network

Local technical support reaches you wherever your projects operate. Professional engineering consultation, stable spare parts supply chains, and lifecycle maintenance services protect your investment throughout its operational life.

Innovation and Sustainability

Guided by our philosophy of "National Tellhow, International Tellhow," we commit to technological innovation, intelligent manufacturing, and sustainable development. You partner with a company building a globally recognized motor manufacturing base.

Frequently Asked Questions

Q: How long does the purge cycle take before the motor can start?

A: Purge duration depends on enclosure volume and airflow rate. Typical cycles complete in 5-15 minutes. Our control system calculates the exact requirement to achieve five volume exchanges, ensuring complete gas removal before energization.

Q: What happens if the pressure system fails during operation?

A: Redundant pressure sensors continuously monitor internal conditions. If pressure drops below the safety threshold, the system triggers visual and audible alarms. If pressure continues falling, automatic shutdown sequences de-energize the motor safely. This prevents any possibility of explosive mixture ingress.

Q: Can these motors operate in Zone 0 hazardous areas?

A: Our standard positive pressure increased safety design certifies for Zone 1 and Zone 2 applications. Zone 0 requires additional protection levels. Contact our engineering team to discuss your specific requirements and available solutions.

Q: How does maintenance differ from standard motors?

A: Regular maintenance includes pressure system validation, air filter replacement, and seal inspection. We recommend quarterly pressure leak tests and annual comprehensive inspections. Our service network provides detailed maintenance protocols and certified spare parts.

Q: What's the typical delivery time for custom configurations?

A: Standard configurations ship within 8-12 weeks. Custom designs require engineering review, typically adding 2-4 weeks. For urgent projects, expedited production schedules are available. Contact us with your timeline requirements.

Q: Do you provide installation and commissioning support?

A: Yes. Our global service network offers on-site technical support, installation supervision, and commissioning services. We provide comprehensive documentation and operator training to ensure successful startup and reliable long-term operation.

Contact Us

Email our technical team at sxmotor@yeah.net to discuss your specific requirements for Positive pressure increased safety synchronous motor.
